ArConstFunctor4C< T, P1, P2, P3, P4 > Class Template Reference

Functor for a const member function with 4 parameters. More...

#include <ArFunctor.h>

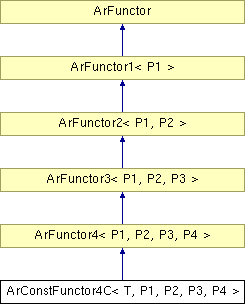

Inheritance diagram for ArConstFunctor4C< T, P1, P2, P3, P4 >:

ArFunctor4< P1, P2, P3, P4 > ArFunctor3< P1, P2, P3 > ArFunctor2< P1, P2 > ArFunctor1< P1 > ArFunctor List of all members.

Public Member Functions

 ArConstFunctor4C (T *obj, void(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3, P4 p4)
 Constructor - supply function pointer, default parameters.
 ArConstFunctor4C (T *obj, void(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3)
 Constructor - supply function pointer, default parameters.
 ArConstFunctor4C (T *obj, void(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2)
 Constructor - supply function pointer, default parameters.
 ArConstFunctor4C (T *obj, void(T::*func)(P1, P2, P3, P4), P1 p1)
 Constructor - supply function pointer, default parameters.
 ArConstFunctor4C (T *obj, void(T::*func)(P1, P2, P3, P4) const)
 Constructor - supply function pointer.
 ArConstFunctor4C (T &obj, void(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3, P4 p4)
 Constructor - supply function pointer, default parameters.
 ArConstFunctor4C (T &obj, void(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3)
 Constructor - supply function pointer, default parameters.
 ArConstFunctor4C (T &obj, void(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2)
 Constructor - supply function pointer, default parameters.
 ArConstFunctor4C (T &obj, void(T::*func)(P1, P2, P3, P4), P1 p1)
 Constructor - supply function pointer, default parameters.
 ArConstFunctor4C (T &obj, void(T::*func)(P1, P2, P3, P4) const)
 Constructor - supply function pointer.
 ArConstFunctor4C ()
 Constructor.
virtual void invoke (P1 p1, P2 p2, P3 p3, P4 p4)
 Invokes the functor.
virtual void invoke (P1 p1, P2 p2, P3 p3)
 Invokes the functor.
virtual void invoke (P1 p1, P2 p2)
 Invokes the functor.
virtual void invoke (P1 p1)
 Invokes the functor.
virtual void invoke (void)
 Invokes the functor.
virtual void setP1 (P1 p1)
 Set the default parameter.
virtual void setP2 (P2 p2)
 Set the default 2nd parameter.
virtual void setP3 (P3 p3)
 Set the default third parameter.
virtual void setP4 (P4 p4)
 Set the default fourth parameter.
virtual void setThis (T &obj)
 Set the 'this' pointer.
virtual void setThis (T *obj)
 Set the 'this' pointer.
virtual ~ArConstFunctor4C ()
 Destructor.

Protected Attributes

void(T::* myFunc )(P1, P2, P3, P4) const
T * myObj
P1 myP1
P2 myP2
P3 myP3
P4 myP4

Detailed Description

template<class T, class P1, class P2, class P3, class P4>
class ArConstFunctor4C< T, P1, P2, P3, P4 >

Functor for a const member function with 4 parameters.

This is a class for const member functions which take 4 parameters. This class contains the knowledge on how to call a const member function on a particular instance of a class. This class should be instantiated by code that wishes to pass off a functor to another piece of code.

For an overall description of functors, see ArFunctor.

Definition at line 3002 of file ArFunctor.h.

Constructor & Destructor Documentation

template<class T, class P1, class P2, class P3, class P4>
ArConstFunctor4C< T, P1, P2, P3, P4 >::ArConstFunctor4C (  T &  obj,
void(T::*)(P1, P2, P3, P4) const   func
)  [inline]


Constructor - supply function pointer.

Parameters:
func const member function pointer

Definition at line 3013 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArConstFunctor4C< T, P1, P2, P3, P4 >::ArConstFunctor4C (  T &  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter

Definition at line 3021 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArConstFunctor4C< T, P1, P2, P3, P4 >::ArConstFunctor4C (  T &  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1,
P2  p2
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter
p2 default second parameter

Definition at line 3030 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArConstFunctor4C< T, P1, P2, P3, P4 >::ArConstFunctor4C (  T &  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1,
P2  p2,
P3  p3
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter
p2 default second parameter
p3 default third parameter

Definition at line 3040 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArConstFunctor4C< T, P1, P2, P3, P4 >::ArConstFunctor4C (  T &  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1,
P2  p2,
P3  p3,
P4  p4
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter
p2 default second parameter
p3 default third parameter
p3 default fourth parameter

Definition at line 3051 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArConstFunctor4C< T, P1, P2, P3, P4 >::ArConstFunctor4C (  T *  obj,
void(T::*)(P1, P2, P3, P4) const   func
)  [inline]


Constructor - supply function pointer.

Parameters:
func const member function pointer

Definition at line 3058 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArConstFunctor4C< T, P1, P2, P3, P4 >::ArConstFunctor4C (  T *  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter

Definition at line 3066 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArConstFunctor4C< T, P1, P2, P3, P4 >::ArConstFunctor4C (  T *  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1,
P2  p2
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter
p2 default second parameter

Definition at line 3075 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArConstFunctor4C< T, P1, P2, P3, P4 >::ArConstFunctor4C (  T *  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1,
P2  p2,
P3  p3
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter
p2 default second parameter
p3 default third parameter

Definition at line 3085 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArConstFunctor4C< T, P1, P2, P3, P4 >::ArConstFunctor4C (  T *  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1,
P2  p2,
P3  p3,
P4  p4
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter
p2 default second parameter
p3 default third parameter
p4 default fourth parameter

Definition at line 3096 of file ArFunctor.h.

Member Function Documentation

template<class T, class P1, class P2, class P3, class P4>
virtual void ArConstFunctor4C< T, P1, P2, P3, P4 >::invoke (  P1  p1,
P2  p2,
P3  p3,
P4  p4
)  [inline, virtual]


Invokes the functor.

Parameters:
p1 first parameter
p2 second parameter
p3 third parameter
p4 fourth parameter

Implements ArFunctor4< P1, P2, P3, P4 >.

Definition at line 3134 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArConstFunctor4C< T, P1, P2, P3, P4 >::invoke (  P1  p1,
P2  p2,
P3  p3
)  [inline, virtual]


Invokes the functor.

Parameters:
p1 first parameter
p2 second parameter
p3 third parameter

Implements ArFunctor4< P1, P2, P3, P4 >.

Definition at line 3125 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArConstFunctor4C< T, P1, P2, P3, P4 >::invoke (  P1  p1,
P2  p2
)  [inline, virtual]


Invokes the functor.

Parameters:
p1 first parameter
p2 second parameter

Implements ArFunctor4< P1, P2, P3, P4 >.

Definition at line 3117 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArConstFunctor4C< T, P1, P2, P3, P4 >::invoke (  P1  p1  )  [inline, virtual]


Invokes the functor.

Parameters:
p1 first parameter

Implements ArFunctor4< P1, P2, P3, P4 >.

Definition at line 3110 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArConstFunctor4C< T, P1, P2, P3, P4 >::setP1 (  P1  p1  )  [inline, virtual]


Set the default parameter.

Parameters:
p1 default first parameter

Definition at line 3152 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArConstFunctor4C< T, P1, P2, P3, P4 >::setP2 (  P2  p2  )  [inline, virtual]


Set the default 2nd parameter.

Parameters:
p2 default second parameter

Definition at line 3158 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArConstFunctor4C< T, P1, P2, P3, P4 >::setP3 (  P3  p3  )  [inline, virtual]


Set the default third parameter.

Parameters:
p3 default third parameter

Definition at line 3164 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArConstFunctor4C< T, P1, P2, P3, P4 >::setP4 (  P4  p4  )  [inline, virtual]


Set the default fourth parameter.

Parameters:
p3 default fourth parameter

Definition at line 3170 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArConstFunctor4C< T, P1, P2, P3, P4 >::setThis (  T &  obj  )  [inline, virtual]


Set the 'this' pointer.

Parameters:
obj the 'this' pointer

Definition at line 3146 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArConstFunctor4C< T, P1, P2, P3, P4 >::setThis (  T *  obj  )  [inline, virtual]


Set the 'this' pointer.

Parameters:
obj the 'this' pointer

Definition at line 3140 of file ArFunctor.h.

The documentation for this class was generated from the following file:
