ArConstRetFunctor3C< Ret, T, P1, P2, P3 > Class Template Reference

Functor for a const member function with return value and 3 parameters. More...

#include <ArFunctor.h>

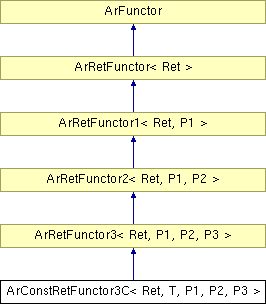

Inheritance diagram for ArConstRetFunctor3C< Ret, T, P1, P2, P3 >:

List of all members.

Public Member Functions
	ArConstRetFunctor3C (T *obj, Ret(T::*func)(P1, P2, P3) const, P1 p1, P2 p2, P3 p3)
	Constructor - supply function pointer, default parameters.
	ArConstRetFunctor3C (T *obj, Ret(T::*func)(P1, P2, P3) const, P1 p1, P2 p2)
	Constructor - supply function pointer, default parameters.
	ArConstRetFunctor3C (T *obj, Ret(T::*func)(P1, P2, P3) const, P1 p1)
	Constructor - supply function pointer, default parameters.
	ArConstRetFunctor3C (T *obj, Ret(T::*func)(P1, P2, P3) const)
	Constructor - supply function pointer.
	ArConstRetFunctor3C (T &obj, Ret(T::*func)(P1, P2, P3) const, P1 p1, P2 p2, P3 p3)
	Constructor - supply function pointer, default parameters.
	ArConstRetFunctor3C (T &obj, Ret(T::*func)(P1, P2, P3) const, P1 p1, P2 p2)
	Constructor - supply function pointer, default parameters.
	ArConstRetFunctor3C (T &obj, Ret(T::*func)(P1, P2, P3) const, P1 p1)
	Constructor - supply function pointer, default parameters.
	ArConstRetFunctor3C (T &obj, Ret(T::*func)(P1, P2, P3) const)
	Constructor - supply function pointer.
	ArConstRetFunctor3C ()
	Constructor.
virtual Ret	invokeR (P1 p1, P2 p2, P3 p3)
	Invokes the functor with return value.
virtual Ret	invokeR (P1 p1, P2 p2)
	Invokes the functor with return value.
virtual Ret	invokeR (P1 p1)
	Invokes the functor with return value.
virtual Ret	invokeR (void)
	Invokes the functor with return value.
virtual void	setP1 (P1 p1)
	Set the default parameter.
virtual void	setP2 (P2 p2)
	Set the default 2nd parameter.
virtual void	setP3 (P3 p3)
	Set the default third parameter.
virtual void	setThis (T &obj)
	Set the 'this' pointer.
virtual void	setThis (T *obj)
	Set the 'this' pointer.
virtual	~ArConstRetFunctor3C ()
	Destructor.
Protected Attributes
Ret(T::*	myFunc )(P1, P2, P3) const
T *	myObj
P1	myP1
P2	myP2
P3	myP3

---

Detailed Description

template<class Ret, class T, class P1, class P2, class P3>
class ArConstRetFunctor3C< Ret, T, P1, P2, P3 >

Functor for a const member function with return value and 3 parameters.

This is a class for const member functions which take 3 parameters and return a value. This class contains the knowledge on how to call a member function on a particular instance of a class. This class should be instantiated by code that wishes to pass off a functor to another piece of code.

For an overall description of functors, see ArFunctor.

Definition at line 3466 of file ArFunctor.h.

---

Constructor & Destructor Documentation

template<class Ret, class T, class P1, class P2, class P3> ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::ArConstRetFunctor3C (  T &  obj, Ret(T::*)(P1, P2, P3) const   func )  [inline]

Constructor - supply function pointer. Parameters: func  const member function pointer Definition at line 3477 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3> ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::ArConstRetFunctor3C (  T &  obj, Ret(T::*)(P1, P2, P3) const   func, P1  p1 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  const member function pointer p1  default first parameter Definition at line 3485 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3> ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::ArConstRetFunctor3C (  T &  obj, Ret(T::*)(P1, P2, P3) const   func, P1  p1, P2  p2 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  const member function pointer p1  default first parameter p2  default second parameter Definition at line 3494 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3> ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::ArConstRetFunctor3C (  T &  obj, Ret(T::*)(P1, P2, P3) const   func, P1  p1, P2  p2, P3  p3 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  const member function pointer p1  default first parameter p2  default second parameter Definition at line 3503 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3> ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::ArConstRetFunctor3C (  T *  obj, Ret(T::*)(P1, P2, P3) const   func )  [inline]

Constructor - supply function pointer. Parameters: func  const member function pointer Definition at line 3510 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3> ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::ArConstRetFunctor3C (  T *  obj, Ret(T::*)(P1, P2, P3) const   func, P1  p1 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  const member function pointer p1  default first parameter Definition at line 3518 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3> ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::ArConstRetFunctor3C (  T *  obj, Ret(T::*)(P1, P2, P3) const   func, P1  p1, P2  p2 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  const member function pointer p1  default first parameter p2  default second parameter Definition at line 3527 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3> ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::ArConstRetFunctor3C (  T *  obj, Ret(T::*)(P1, P2, P3) const   func, P1  p1, P2  p2, P3  p3 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  const member function pointer p1  default first parameter p2  default second parameter p3  default third parameter Definition at line 3537 of file ArFunctor.h.

---

Member Function Documentation

template<class Ret, class T, class P1, class P2, class P3> virtual Ret ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::invokeR (  P1  p1, P2  p2, P3  p3 )  [inline, virtual]

Invokes the functor with return value. Parameters: p1  first parameter p2  second parameter Implements ArRetFunctor3< Ret, P1, P2, P3 >. Definition at line 3564 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3> virtual Ret ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::invokeR (  P1  p1, P2  p2 )  [inline, virtual]

Invokes the functor with return value. Parameters: p1  first parameter p2  second parameter Implements ArRetFunctor3< Ret, P1, P2, P3 >. Definition at line 3557 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3> virtual Ret ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::invokeR (  P1  p1  )  [inline, virtual]

Invokes the functor with return value. Parameters: p1  first parameter Implements ArRetFunctor3< Ret, P1, P2, P3 >. Definition at line 3550 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3> virtual void ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::setP1 (  P1  p1  )  [inline, virtual]

Set the default parameter. Parameters: p1  default first parameter Definition at line 3583 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3> virtual void ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::setP2 (  P2  p2  )  [inline, virtual]

Set the default 2nd parameter. Parameters: p2  default second parameter Definition at line 3589 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3> virtual void ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::setP3 (  P3  p3  )  [inline, virtual]

Set the default third parameter. Parameters: p3  default third parameter Definition at line 3595 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3> virtual void ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::setThis (  T &  obj  )  [inline, virtual]

Set the 'this' pointer. Parameters: obj  the 'this' pointer Definition at line 3577 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3> virtual void ArConstRetFunctor3C< Ret, T, P1, P2, P3 >::setThis (  T *  obj  )  [inline, virtual]

Set the 'this' pointer. Parameters: obj  the 'this' pointer Definition at line 3571 of file ArFunctor.h.

---

The documentation for this class was generated from the following file:

• ArFunctor.h

---
