ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 > Class Template Reference

Functor for a const member function with return value and 4 parameters. More...

#include <ArFunctor.h>

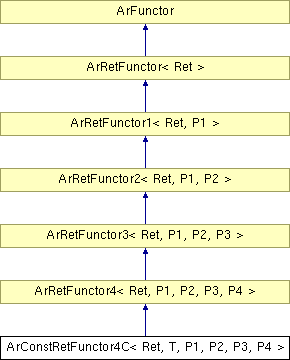

Inheritance diagram for ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >:

ArRetFunctor4< Ret, P1, P2, P3, P4 > ArRetFunctor3< Ret, P1, P2, P3 > ArRetFunctor2< Ret, P1, P2 > ArRetFunctor1< Ret, P1 > ArRetFunctor< Ret > ArFunctor List of all members.

Public Member Functions

 ArConstRetFunctor4C (T *obj, Ret(T::*func)(P1, P2, P3, P4) const, P1 p1, P2 p2, P3 p3, P4 p4)
 Constructor - supply function pointer, default parameters.
 ArConstRetFunctor4C (T *obj, Ret(T::*func)(P1, P2, P3, P4) const, P1 p1, P2 p2, P3 p3)
 Constructor - supply function pointer, default parameters.
 ArConstRetFunctor4C (T *obj, Ret(T::*func)(P1, P2, P3, P4) const, P1 p1, P2 p2)
 Constructor - supply function pointer, default parameters.
 ArConstRetFunctor4C (T *obj, Ret(T::*func)(P1, P2, P3, P4) const, P1 p1)
 Constructor - supply function pointer, default parameters.
 ArConstRetFunctor4C (T *obj, Ret(T::*func)(P1, P2, P3, P4) const)
 Constructor - supply function pointer.
 ArConstRetFunctor4C (T &obj, Ret(T::*func)(P1, P2, P3, P4) const, P1 p1, P2 p2, P3 p3, P4 p4)
 Constructor - supply function pointer, default parameters.
 ArConstRetFunctor4C (T &obj, Ret(T::*func)(P1, P2, P3, P4) const, P1 p1, P2 p2, P3 p3)
 Constructor - supply function pointer, default parameters.
 ArConstRetFunctor4C (T &obj, Ret(T::*func)(P1, P2, P3, P4) const, P1 p1, P2 p2)
 Constructor - supply function pointer, default parameters.
 ArConstRetFunctor4C (T &obj, Ret(T::*func)(P1, P2, P3, P4) const, P1 p1)
 Constructor - supply function pointer, default parameters.
 ArConstRetFunctor4C (T &obj, Ret(T::*func)(P1, P2, P3, P4) const)
 Constructor - supply function pointer.
 ArConstRetFunctor4C ()
 Constructor.
virtual Ret invokeR (P1 p1, P2 p2, P3 p3, P4 p4)
 Invokes the functor with return value.
virtual Ret invokeR (P1 p1, P2 p2, P3 p3)
 Invokes the functor with return value.
virtual Ret invokeR (P1 p1, P2 p2)
 Invokes the functor with return value.
virtual Ret invokeR (P1 p1)
 Invokes the functor with return value.
virtual Ret invokeR (void)
 Invokes the functor with return value.
virtual void setP1 (P1 p1)
 Set the default parameter.
virtual void setP2 (P2 p2)
 Set the default 2nd parameter.
virtual void setP3 (P3 p3)
 Set the default third parameter.
virtual void setP4 (P4 p4)
 Set the default fourth parameter.
virtual void setThis (T &obj)
 Set the 'this' pointer.
virtual void setThis (T *obj)
 Set the 'this' pointer.
virtual ~ArConstRetFunctor4C ()
 Destructor.

Protected Attributes

Ret(T::* myFunc )(P1, P2, P3, P4) const
T * myObj
P1 myP1
P2 myP2
P3 myP3
P4 myP4

Detailed Description

template<class Ret, class T, class P1, class P2, class P3, class P4>
class ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >

Functor for a const member function with return value and 4 parameters.

This is a class for const member functions which take 4 parameters and return a value. This class contains the knowledge on how to call a member function on a particular instance of a class. This class should be instantiated by code that wishes to pass off a functor to another piece of code.

For an overall description of functors, see ArFunctor.

Definition at line 3622 of file ArFunctor.h.

Constructor & Destructor Documentation

template<class Ret, class T, class P1, class P2, class P3, class P4>
ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArConstRetFunctor4C (  T &  obj,
Ret(T::*)(P1, P2, P3, P4) const   func
)  [inline]


Constructor - supply function pointer.

Parameters:
func const member function pointer

Definition at line 3633 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArConstRetFunctor4C (  T &  obj,
Ret(T::*)(P1, P2, P3, P4) const   func,
P1  p1
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter

Definition at line 3641 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArConstRetFunctor4C (  T &  obj,
Ret(T::*)(P1, P2, P3, P4) const   func,
P1  p1,
P2  p2
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter
p2 default second parameter

Definition at line 3650 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArConstRetFunctor4C (  T &  obj,
Ret(T::*)(P1, P2, P3, P4) const   func,
P1  p1,
P2  p2,
P3  p3
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter
p2 default second parameter
p3 default third parameter

Definition at line 3660 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArConstRetFunctor4C (  T &  obj,
Ret(T::*)(P1, P2, P3, P4) const   func,
P1  p1,
P2  p2,
P3  p3,
P4  p4
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter
p2 default second parameter
p3 default third parameter
p4 default fourth parameter

Definition at line 3671 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArConstRetFunctor4C (  T *  obj,
Ret(T::*)(P1, P2, P3, P4) const   func
)  [inline]


Constructor - supply function pointer.

Parameters:
func const member function pointer

Definition at line 3680 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArConstRetFunctor4C (  T *  obj,
Ret(T::*)(P1, P2, P3, P4) const   func,
P1  p1
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter

Definition at line 3688 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArConstRetFunctor4C (  T *  obj,
Ret(T::*)(P1, P2, P3, P4) const   func,
P1  p1,
P2  p2
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter
p2 default second parameter

Definition at line 3697 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArConstRetFunctor4C (  T *  obj,
Ret(T::*)(P1, P2, P3, P4) const   func,
P1  p1,
P2  p2,
P3  p3
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter
p2 default second parameter
p3 default third parameter

Definition at line 3707 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArConstRetFunctor4C (  T *  obj,
Ret(T::*)(P1, P2, P3, P4) const   func,
P1  p1,
P2  p2,
P3  p3,
P4  p4
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func const member function pointer
p1 default first parameter
p2 default second parameter
p3 default third parameter
p3 default fourth parameter

Definition at line 3718 of file ArFunctor.h.

Member Function Documentation

template<class Ret, class T, class P1, class P2, class P3, class P4>
virtual Ret ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::invokeR (  P1  p1,
P2  p2,
P3  p3,
P4  p4
)  [inline, virtual]


Invokes the functor with return value.

Parameters:
p1 first parameter
p2 second parameter
p3 third parameter
p4 fourth parameter

Implements ArRetFunctor4< Ret, P1, P2, P3, P4 >.

Definition at line 3755 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
virtual Ret ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::invokeR (  P1  p1,
P2  p2,
P3  p3
)  [inline, virtual]


Invokes the functor with return value.

Parameters:
p1 first parameter
p2 second parameter

Implements ArRetFunctor4< Ret, P1, P2, P3, P4 >.

Definition at line 3745 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
virtual Ret ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::invokeR (  P1  p1,
P2  p2
)  [inline, virtual]


Invokes the functor with return value.

Parameters:
p1 first parameter
p2 second parameter

Implements ArRetFunctor4< Ret, P1, P2, P3, P4 >.

Definition at line 3738 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
virtual Ret ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::invokeR (  P1  p1  )  [inline, virtual]


Invokes the functor with return value.

Parameters:
p1 first parameter

Implements ArRetFunctor4< Ret, P1, P2, P3, P4 >.

Definition at line 3731 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
virtual void ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::setP1 (  P1  p1  )  [inline, virtual]


Set the default parameter.

Parameters:
p1 default first parameter

Definition at line 3775 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
virtual void ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::setP2 (  P2  p2  )  [inline, virtual]


Set the default 2nd parameter.

Parameters:
p2 default second parameter

Definition at line 3781 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
virtual void ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::setP3 (  P3  p3  )  [inline, virtual]


Set the default third parameter.

Parameters:
p3 default third parameter

Definition at line 3787 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
virtual void ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::setP4 (  P4  p4  )  [inline, virtual]


Set the default fourth parameter.

Parameters:
p4 default fourth parameter

Definition at line 3793 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
virtual void ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::setThis (  T &  obj  )  [inline, virtual]


Set the 'this' pointer.

Parameters:
obj the 'this' pointer

Definition at line 3769 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4>
virtual void ArConstRetFunctor4C< Ret, T, P1, P2, P3, P4 >::setThis (  T *  obj  )  [inline, virtual]


Set the 'this' pointer.

Parameters:
obj the 'this' pointer

Definition at line 3763 of file ArFunctor.h.

The documentation for this class was generated from the following file:
