ArFunctor4C< T, P1, P2, P3, P4 > Class Template Reference

Functor for a member function with 4 parameters. More...

#include <ArFunctor.h>

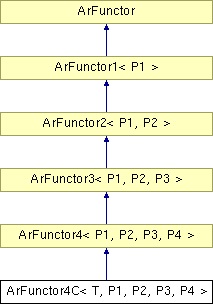

Inheritance diagram for ArFunctor4C< T, P1, P2, P3, P4 >:

ArFunctor4< P1, P2, P3, P4 > ArFunctor3< P1, P2, P3 > ArFunctor2< P1, P2 > ArFunctor1< P1 > ArFunctor List of all members.

Public Member Functions

 ArFunctor4C (T *obj, void(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3, P4 p4)
 Constructor - supply function pointer, default parameters.
 ArFunctor4C (T *obj, void(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3)
 Constructor - supply function pointer, default parameters.
 ArFunctor4C (T *obj, void(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2)
 Constructor - supply function pointer, default parameters.
 ArFunctor4C (T *obj, void(T::*func)(P1, P2, P3, P4), P1 p1)
 Constructor - supply function pointer, default parameters.
 ArFunctor4C (T *obj, void(T::*func)(P1, P2, P3, P4))
 Constructor - supply function pointer.
 ArFunctor4C (T &obj, void(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3, P4 p4)
 Constructor - supply function pointer, default parameters.
 ArFunctor4C (T &obj, void(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3)
 Constructor - supply function pointer, default parameters.
 ArFunctor4C (T &obj, void(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2)
 Constructor - supply function pointer, default parameters.
 ArFunctor4C (T &obj, void(T::*func)(P1, P2, P3, P4), P1 p1)
 Constructor - supply function pointer, default parameters.
 ArFunctor4C (T &obj, void(T::*func)(P1, P2, P3, P4))
 Constructor - supply function pointer.
 ArFunctor4C ()
 Constructor.
virtual void invoke (P1 p1, P2 p2, P3 p3, P4 p4)
 Invokes the functor.
virtual void invoke (P1 p1, P2 p2, P3 p3)
 Invokes the functor.
virtual void invoke (P1 p1, P2 p2)
 Invokes the functor.
virtual void invoke (P1 p1)
 Invokes the functor.
virtual void invoke (void)
 Invokes the functor.
virtual void setP1 (P1 p1)
 Set the default parameter.
virtual void setP2 (P2 p2)
 Set the default 2nd parameter.
virtual void setP3 (P3 p3)
 Set the default third parameter.
virtual void setP4 (P4 p4)
 Set the default fourth parameter.
virtual void setThis (T &obj)
 Set the 'this' pointer.
virtual void setThis (T *obj)
 Set the 'this' pointer.
virtual ~ArFunctor4C ()
 Destructor.

Protected Attributes

void(T::* myFunc )(P1, P2, P3, P4)
T * myObj
P1 myP1
P2 myP2
P3 myP3
P4 myP4

Detailed Description

template<class T, class P1, class P2, class P3, class P4>
class ArFunctor4C< T, P1, P2, P3, P4 >

Functor for a member function with 4 parameters.

This is a class for member functions which take 4 parameters. This class contains the knowledge on how to call a member function on a particular instance of a class. This class should be instantiated by code that wishes to pass off a functor to another piece of code.

For an overall description of functors, see ArFunctor.

Definition at line 1760 of file ArFunctor.h.

Constructor & Destructor Documentation

template<class T, class P1, class P2, class P3, class P4>
ArFunctor4C< T, P1, P2, P3, P4 >::ArFunctor4C (  T &  obj,
void(T::*)(P1, P2, P3, P4)  func
)  [inline]


Constructor - supply function pointer.

Parameters:
func member function pointer

Definition at line 1771 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArFunctor4C< T, P1, P2, P3, P4 >::ArFunctor4C (  T &  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func member function pointer
p1 default first parameter

Definition at line 1779 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArFunctor4C< T, P1, P2, P3, P4 >::ArFunctor4C (  T &  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1,
P2  p2
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func member function pointer
p1 default first parameter
p2 default second parameter

Definition at line 1788 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArFunctor4C< T, P1, P2, P3, P4 >::ArFunctor4C (  T &  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1,
P2  p2,
P3  p3
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func member function pointer
p1 default first parameter
p2 default second parameter
p3 default third parameter

Definition at line 1798 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArFunctor4C< T, P1, P2, P3, P4 >::ArFunctor4C (  T &  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1,
P2  p2,
P3  p3,
P4  p4
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func member function pointer
p1 default first parameter
p2 default second parameter
p3 default third parameter
p3 default fourth parameter

Definition at line 1809 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArFunctor4C< T, P1, P2, P3, P4 >::ArFunctor4C (  T *  obj,
void(T::*)(P1, P2, P3, P4)  func
)  [inline]


Constructor - supply function pointer.

Parameters:
func member function pointer

Definition at line 1816 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArFunctor4C< T, P1, P2, P3, P4 >::ArFunctor4C (  T *  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func member function pointer
p1 default first parameter

Definition at line 1824 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArFunctor4C< T, P1, P2, P3, P4 >::ArFunctor4C (  T *  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1,
P2  p2
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func member function pointer
p1 default first parameter
p2 default second parameter

Definition at line 1833 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArFunctor4C< T, P1, P2, P3, P4 >::ArFunctor4C (  T *  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1,
P2  p2,
P3  p3
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func member function pointer
p1 default first parameter
p2 default second parameter
p3 default third parameter

Definition at line 1843 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
ArFunctor4C< T, P1, P2, P3, P4 >::ArFunctor4C (  T *  obj,
void(T::*)(P1, P2, P3, P4)  func,
P1  p1,
P2  p2,
P3  p3,
P4  p4
)  [inline]


Constructor - supply function pointer, default parameters.

Parameters:
func member function pointer
p1 default first parameter
p2 default second parameter
p3 default third parameter
p4 default fourth parameter

Definition at line 1854 of file ArFunctor.h.

Member Function Documentation

template<class T, class P1, class P2, class P3, class P4>
virtual void ArFunctor4C< T, P1, P2, P3, P4 >::invoke (  P1  p1,
P2  p2,
P3  p3,
P4  p4
)  [inline, virtual]


Invokes the functor.

Parameters:
p1 first parameter
p2 second parameter
p3 third parameter
p4 fourth parameter

Implements ArFunctor4< P1, P2, P3, P4 >.

Definition at line 1892 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArFunctor4C< T, P1, P2, P3, P4 >::invoke (  P1  p1,
P2  p2,
P3  p3
)  [inline, virtual]


Invokes the functor.

Parameters:
p1 first parameter
p2 second parameter
p3 third parameter

Implements ArFunctor4< P1, P2, P3, P4 >.

Definition at line 1883 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArFunctor4C< T, P1, P2, P3, P4 >::invoke (  P1  p1,
P2  p2
)  [inline, virtual]


Invokes the functor.

Parameters:
p1 first parameter
p2 second parameter

Implements ArFunctor4< P1, P2, P3, P4 >.

Definition at line 1875 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArFunctor4C< T, P1, P2, P3, P4 >::invoke (  P1  p1  )  [inline, virtual]


Invokes the functor.

Parameters:
p1 first parameter

Implements ArFunctor4< P1, P2, P3, P4 >.

Definition at line 1868 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArFunctor4C< T, P1, P2, P3, P4 >::setP1 (  P1  p1  )  [inline, virtual]


Set the default parameter.

Parameters:
p1 default first parameter

Definition at line 1910 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArFunctor4C< T, P1, P2, P3, P4 >::setP2 (  P2  p2  )  [inline, virtual]


Set the default 2nd parameter.

Parameters:
p2 default second parameter

Definition at line 1916 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArFunctor4C< T, P1, P2, P3, P4 >::setP3 (  P3  p3  )  [inline, virtual]


Set the default third parameter.

Parameters:
p3 default third parameter

Definition at line 1922 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArFunctor4C< T, P1, P2, P3, P4 >::setP4 (  P4  p4  )  [inline, virtual]


Set the default fourth parameter.

Parameters:
p3 default fourth parameter

Definition at line 1928 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArFunctor4C< T, P1, P2, P3, P4 >::setThis (  T &  obj  )  [inline, virtual]


Set the 'this' pointer.

Parameters:
obj the 'this' pointer

Definition at line 1904 of file ArFunctor.h.

template<class T, class P1, class P2, class P3, class P4>
virtual void ArFunctor4C< T, P1, P2, P3, P4 >::setThis (  T *  obj  )  [inline, virtual]


Set the 'this' pointer.

Parameters:
obj the 'this' pointer

Definition at line 1898 of file ArFunctor.h.

The documentation for this class was generated from the following file:
