ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 > Class Template Reference

Functor for a global function with 4 parameters and return value. More...

#include <ArFunctor.h>

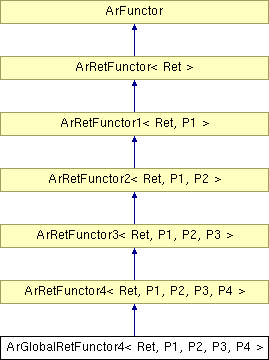

Inheritance diagram for ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >:

List of all members.

Public Member Functions
	ArGlobalRetFunctor4 (Ret(*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3, P4 p4)
	Constructor - supply function pointer, default parameters.
	ArGlobalRetFunctor4 (Ret(*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3)
	Constructor - supply function pointer, default parameters.
	ArGlobalRetFunctor4 (Ret(*func)(P1, P2, P3), P1 p1, P2 p2)
	Constructor - supply function pointer, default parameters.
	ArGlobalRetFunctor4 (Ret(*func)(P1, P2, P3), P1 p1)
	Constructor - supply function pointer, default parameters.
	ArGlobalRetFunctor4 (Ret(*func)(P1, P2, P3))
	Constructor - supply function pointer.
	ArGlobalRetFunctor4 ()
	Constructor.
virtual Ret	invokeR (P1 p1, P2 p2, P3 p3, P4 p4)
	Invokes the functor with return value.
virtual Ret	invokeR (P1 p1, P2 p2, P3 p3)
	Invokes the functor with return value.
virtual Ret	invokeR (P1 p1, P2 p2)
	Invokes the functor with return value.
virtual Ret	invokeR (P1 p1)
	Invokes the functor with return value.
virtual Ret	invokeR (void)
	Invokes the functor with return value.
virtual void	setP1 (P1 p1)
	Set the default parameter.
virtual void	setP2 (P2 p2)
	Set the default 2nd parameter.
virtual void	setP3 (P3 p3)
	Set the default third parameter.
virtual void	setP4 (P4 p4)
	Set the default fourth parameter.
virtual	~ArGlobalRetFunctor4 ()
	Destructor.
Protected Attributes
Ret(*	myFunc )(P1, P2, P3, P4)
P1	myP1
P2	myP2
P3	myP3
P4	myP4

---

Detailed Description

template<class Ret, class P1, class P2, class P3, class P4>
class ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >

Functor for a global function with 4 parameters and return value.

This is a class for global functions which take 4 parameters and return a value. This ties a C style function pointer into the functor class hierarchy as a convience. Code that has a reference to this class and treat it as an ArFunctor can use it like any other functor.

For an overall description of functors, see ArFunctor.

Definition at line 1198 of file ArFunctor.h.

---

Constructor & Destructor Documentation

template<class Ret, class P1, class P2, class P3, class P4> ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >::ArGlobalRetFunctor4 (  Ret(*)(P1, P2, P3)  func  )  [inline]

Constructor - supply function pointer. Parameters: func  global function pointer Definition at line 1209 of file ArFunctor.h.

template<class Ret, class P1, class P2, class P3, class P4> ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >::ArGlobalRetFunctor4 (  Ret(*)(P1, P2, P3)  func, P1  p1 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  global function pointer p1  default first parameter Definition at line 1217 of file ArFunctor.h.

template<class Ret, class P1, class P2, class P3, class P4> ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >::ArGlobalRetFunctor4 (  Ret(*)(P1, P2, P3)  func, P1  p1, P2  p2 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  global function pointer p1  default first parameter p2  default second parameter Definition at line 1226 of file ArFunctor.h.

template<class Ret, class P1, class P2, class P3, class P4> ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >::ArGlobalRetFunctor4 (  Ret(*)(P1, P2, P3, P4)  func, P1  p1, P2  p2, P3  p3 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  global function pointer p1  default first parameter p2  default second parameter p3  default third parameter Definition at line 1236 of file ArFunctor.h.

template<class Ret, class P1, class P2, class P3, class P4> ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >::ArGlobalRetFunctor4 (  Ret(*)(P1, P2, P3, P4)  func, P1  p1, P2  p2, P3  p3, P4  p4 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  global function pointer p1  default first parameter p2  default second parameter p3  default third parameter p4  default fourth parameter Definition at line 1247 of file ArFunctor.h.

---

Member Function Documentation

template<class Ret, class P1, class P2, class P3, class P4> virtual Ret ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >::invokeR (  P1  p1, P2  p2, P3  p3, P4  p4 )  [inline, virtual]

Invokes the functor with return value. Parameters: p1  first parameter p2  second parameter p3  third parameter p4  fourth parameter Implements ArRetFunctor4< Ret, P1, P2, P3, P4 >. Definition at line 1284 of file ArFunctor.h.

template<class Ret, class P1, class P2, class P3, class P4> virtual Ret ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >::invokeR (  P1  p1, P2  p2, P3  p3 )  [inline, virtual]

Invokes the functor with return value. Parameters: p1  first parameter p2  second parameter p3  third parameter Implements ArRetFunctor4< Ret, P1, P2, P3, P4 >. Definition at line 1275 of file ArFunctor.h.

template<class Ret, class P1, class P2, class P3, class P4> virtual Ret ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >::invokeR (  P1  p1, P2  p2 )  [inline, virtual]

Invokes the functor with return value. Parameters: p1  first parameter p2  second parameter Implements ArRetFunctor4< Ret, P1, P2, P3, P4 >. Definition at line 1267 of file ArFunctor.h.

template<class Ret, class P1, class P2, class P3, class P4> virtual Ret ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >::invokeR (  P1  p1  )  [inline, virtual]

Invokes the functor with return value. Parameters: p1  first parameter Implements ArRetFunctor4< Ret, P1, P2, P3, P4 >. Definition at line 1260 of file ArFunctor.h.

template<class Ret, class P1, class P2, class P3, class P4> virtual void ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >::setP1 (  P1  p1  )  [inline, virtual]

Set the default parameter. Parameters: p1  default first parameter Definition at line 1290 of file ArFunctor.h.

template<class Ret, class P1, class P2, class P3, class P4> virtual void ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >::setP2 (  P2  p2  )  [inline, virtual]

Set the default 2nd parameter. Parameters: p2  default second parameter Definition at line 1296 of file ArFunctor.h.

template<class Ret, class P1, class P2, class P3, class P4> virtual void ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >::setP3 (  P3  p3  )  [inline, virtual]

Set the default third parameter. Parameters: p3  default third parameter Definition at line 1302 of file ArFunctor.h.

template<class Ret, class P1, class P2, class P3, class P4> virtual void ArGlobalRetFunctor4< Ret, P1, P2, P3, P4 >::setP4 (  P4  p4  )  [inline, virtual]

Set the default fourth parameter. Parameters: p4  default fourth parameter Definition at line 1309 of file ArFunctor.h.

---

The documentation for this class was generated from the following file:

• ArFunctor.h

---
