ArRetFunctor4C< Ret, T, P1, P2, P3, P4 > Class Template Reference

Functor for a member function with return value and 4 parameters. More...

#include <ArFunctor.h>

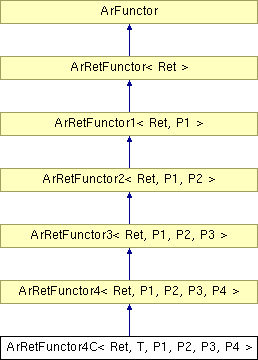

Inheritance diagram for ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >:

List of all members.

Public Member Functions
	ArRetFunctor4C (T *obj, Ret(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3, P4 p4)
	Constructor - supply function pointer, default parameters.
	ArRetFunctor4C (T *obj, Ret(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3)
	Constructor - supply function pointer, default parameters.
	ArRetFunctor4C (T *obj, Ret(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2)
	Constructor - supply function pointer, default parameters.
	ArRetFunctor4C (T *obj, Ret(T::*func)(P1, P2, P3, P4), P1 p1)
	Constructor - supply function pointer, default parameters.
	ArRetFunctor4C (T *obj, Ret(T::*func)(P1, P2, P3, P4))
	Constructor - supply function pointer.
	ArRetFunctor4C (T &obj, Ret(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3, P4 p4)
	Constructor - supply function pointer, default parameters.
	ArRetFunctor4C (T &obj, Ret(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2, P3 p3)
	Constructor - supply function pointer, default parameters.
	ArRetFunctor4C (T &obj, Ret(T::*func)(P1, P2, P3, P4), P1 p1, P2 p2)
	Constructor - supply function pointer, default parameters.
	ArRetFunctor4C (T &obj, Ret(T::*func)(P1, P2, P3, P4), P1 p1)
	Constructor - supply function pointer, default parameters.
	ArRetFunctor4C (T &obj, Ret(T::*func)(P1, P2, P3, P4))
	Constructor - supply function pointer.
	ArRetFunctor4C ()
	Constructor.
virtual Ret	invokeR (P1 p1, P2 p2, P3 p3, P4 p4)
	Invokes the functor with return value.
virtual Ret	invokeR (P1 p1, P2 p2, P3 p3)
	Invokes the functor with return value.
virtual Ret	invokeR (P1 p1, P2 p2)
	Invokes the functor with return value.
virtual Ret	invokeR (P1 p1)
	Invokes the functor with return value.
virtual Ret	invokeR (void)
	Invokes the functor with return value.
virtual void	setP1 (P1 p1)
	Set the default parameter.
virtual void	setP2 (P2 p2)
	Set the default 2nd parameter.
virtual void	setP3 (P3 p3)
	Set the default third parameter.
virtual void	setP4 (P4 p4)
	Set the default fourth parameter.
virtual void	setThis (T &obj)
	Set the 'this' pointer.
virtual void	setThis (T *obj)
	Set the 'this' pointer.
virtual	~ArRetFunctor4C ()
	Destructor.
Protected Attributes
Ret(T::*	myFunc )(P1, P2, P3, P4)
T *	myObj
P1	myP1
P2	myP2
P3	myP3
P4	myP4

---

Detailed Description

template<class Ret, class T, class P1, class P2, class P3, class P4>
class ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >

Functor for a member function with return value and 4 parameters.

This is a class for member functions which take 4 parameters and return a value. This class contains the knowledge on how to call a member function on a particular instance of a class. This class should be instantiated by code that wishes to pass off a functor to another piece of code.

For an overall description of functors, see ArFunctor.

Definition at line 2384 of file ArFunctor.h.

---

Constructor & Destructor Documentation

template<class Ret, class T, class P1, class P2, class P3, class P4> ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArRetFunctor4C (  T &  obj, Ret(T::*)(P1, P2, P3, P4)  func )  [inline]

Constructor - supply function pointer. Parameters: func  member function pointer Definition at line 2395 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArRetFunctor4C (  T &  obj, Ret(T::*)(P1, P2, P3, P4)  func, P1  p1 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  member function pointer p1  default first parameter Definition at line 2403 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArRetFunctor4C (  T &  obj, Ret(T::*)(P1, P2, P3, P4)  func, P1  p1, P2  p2 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  member function pointer p1  default first parameter p2  default second parameter Definition at line 2412 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArRetFunctor4C (  T &  obj, Ret(T::*)(P1, P2, P3, P4)  func, P1  p1, P2  p2, P3  p3 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  member function pointer p1  default first parameter p2  default second parameter p3  default third parameter Definition at line 2422 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArRetFunctor4C (  T &  obj, Ret(T::*)(P1, P2, P3, P4)  func, P1  p1, P2  p2, P3  p3, P4  p4 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  member function pointer p1  default first parameter p2  default second parameter p3  default third parameter p4  default fourth parameter Definition at line 2433 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArRetFunctor4C (  T *  obj, Ret(T::*)(P1, P2, P3, P4)  func )  [inline]

Constructor - supply function pointer. Parameters: func  member function pointer Definition at line 2442 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArRetFunctor4C (  T *  obj, Ret(T::*)(P1, P2, P3, P4)  func, P1  p1 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  member function pointer p1  default first parameter Definition at line 2450 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArRetFunctor4C (  T *  obj, Ret(T::*)(P1, P2, P3, P4)  func, P1  p1, P2  p2 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  member function pointer p1  default first parameter p2  default second parameter Definition at line 2459 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArRetFunctor4C (  T *  obj, Ret(T::*)(P1, P2, P3, P4)  func, P1  p1, P2  p2, P3  p3 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  member function pointer p1  default first parameter p2  default second parameter p3  default third parameter Definition at line 2469 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::ArRetFunctor4C (  T *  obj, Ret(T::*)(P1, P2, P3, P4)  func, P1  p1, P2  p2, P3  p3, P4  p4 )  [inline]

Constructor - supply function pointer, default parameters. Parameters: func  member function pointer p1  default first parameter p2  default second parameter p3  default third parameter p3  default fourth parameter Definition at line 2480 of file ArFunctor.h.

---

Member Function Documentation

template<class Ret, class T, class P1, class P2, class P3, class P4> virtual Ret ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::invokeR (  P1  p1, P2  p2, P3  p3, P4  p4 )  [inline, virtual]

Invokes the functor with return value. Parameters: p1  first parameter p2  second parameter p3  third parameter p4  fourth parameter Implements ArRetFunctor4< Ret, P1, P2, P3, P4 >. Definition at line 2517 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> virtual Ret ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::invokeR (  P1  p1, P2  p2, P3  p3 )  [inline, virtual]

Invokes the functor with return value. Parameters: p1  first parameter p2  second parameter Implements ArRetFunctor4< Ret, P1, P2, P3, P4 >. Definition at line 2507 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> virtual Ret ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::invokeR (  P1  p1, P2  p2 )  [inline, virtual]

Invokes the functor with return value. Parameters: p1  first parameter p2  second parameter Implements ArRetFunctor4< Ret, P1, P2, P3, P4 >. Definition at line 2500 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> virtual Ret ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::invokeR (  P1  p1  )  [inline, virtual]

Invokes the functor with return value. Parameters: p1  first parameter Implements ArRetFunctor4< Ret, P1, P2, P3, P4 >. Definition at line 2493 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> virtual void ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::setP1 (  P1  p1  )  [inline, virtual]

Set the default parameter. Parameters: p1  default first parameter Definition at line 2537 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> virtual void ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::setP2 (  P2  p2  )  [inline, virtual]

Set the default 2nd parameter. Parameters: p2  default second parameter Definition at line 2543 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> virtual void ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::setP3 (  P3  p3  )  [inline, virtual]

Set the default third parameter. Parameters: p3  default third parameter Definition at line 2549 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> virtual void ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::setP4 (  P4  p4  )  [inline, virtual]

Set the default fourth parameter. Parameters: p4  default fourth parameter Definition at line 2555 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> virtual void ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::setThis (  T &  obj  )  [inline, virtual]

Set the 'this' pointer. Parameters: obj  the 'this' pointer Definition at line 2531 of file ArFunctor.h.

template<class Ret, class T, class P1, class P2, class P3, class P4> virtual void ArRetFunctor4C< Ret, T, P1, P2, P3, P4 >::setThis (  T *  obj  )  [inline, virtual]

Set the 'this' pointer. Parameters: obj  the 'this' pointer Definition at line 2525 of file ArFunctor.h.

---

The documentation for this class was generated from the following file:

• ArFunctor.h

---
