ArAction Class Reference

Action class, what typically makes the robot move. More...

#include <ArAction.h>

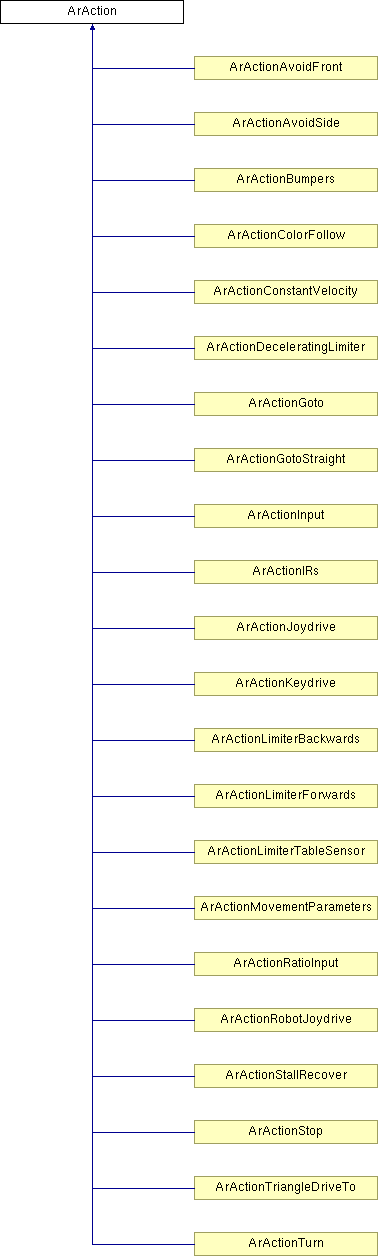

Inheritance diagram for ArAction:

List of all members.

Public Member Functions
virtual void	activate (void)
	Activate the action.
	ArAction (const char *name, const char *description="")
	Constructor.
virtual void	deactivate (void)
	Deactivate the action.
virtual ArActionDesired *	fire (ArActionDesired currentDesired)=0
	Fires the action, returning what the action wants to do.
virtual ArArg *	getArg (int number)
	Gets the numbered argument.
virtual const ArArg *	getArg (int number) const
	Gets the numbered argument.
virtual const char *	getDescription (void) const
	Gets the long description of the action.
virtual ArActionDesired *	getDesired (void)
	Gets what this action wants to do (for display purposes).
virtual const char *	getName (void) const
	Gets the name of the action.
virtual int	getNumArgs (void) const
	Find the number of arguments this action takes.
virtual bool	isActive (void) const
	Finds out whether the action is active or not.
virtual void	log (bool verbose=true) const
	ArLog::log s the actions stats.
virtual void	setRobot (ArRobot *robot)
	Sets the robot this action is driving.
virtual	~ArAction ()
	Desructor.
Protected Member Functions
void	setNextArgument (ArArg const &arg)
	Sets the argument type for the next argument (only use in constructor).
Protected Attributes
std::map< int, ArArg >	myArgumentMap
std::string	myDescription
bool	myIsActive
std::string	myName
int	myNumArgs
ArRobot *	myRobot

---

Detailed Description

Action class, what typically makes the robot move.

Definition at line 39 of file ArAction.h.

---

Member Function Documentation

virtual ArActionDesired* ArAction::fire (  ArActionDesired  currentDesired  )  [pure virtual]

Fires the action, returning what the action wants to do. Parameters: currentDesired  this is what the current resolver has for its desired, this is SOLELY for the purpose of giving information to the action Returns: pointer to what this action wants to do, NULL if it wants to do nothing Implemented in ArActionAvoidFront, ArActionAvoidSide, ArActionBumpers, ArActionColorFollow, ArActionConstantVelocity, ArActionDeceleratingLimiter, ArActionGoto, ArActionGotoStraight, ArActionInput, ArActionIRs, ArActionJoydrive, ArActionKeydrive, ArActionLimiterBackwards, ArActionLimiterForwards, ArActionLimiterTableSensor, ArActionMovementParameters, ArActionRatioInput, ArActionRobotJoydrive, ArActionStallRecover, ArActionStop, ArActionTriangleDriveTo, and ArActionTurn.

---

The documentation for this class was generated from the following files:

• ArAction.h
• ArAction.cpp

---
